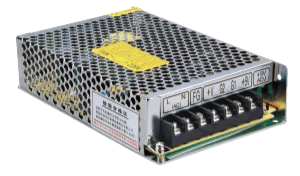

| 50w dual output |
|

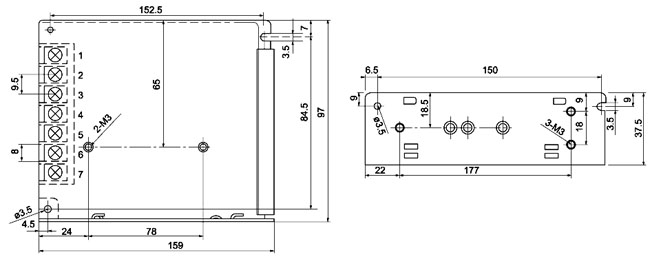

159×97×38mm |
Summary:
Single unit output：powers 50W
Input voltage AC 110/220VAC±20% . Selected by swich
When the orders 380VAC input
Output voltage:The voltage we all can produce between3V-48VDC
| |
|
|
| |
|
Model
Specification |
D-50A |
D-50B |
| CH1 |
CH2 |
CH1 |
CH2 |
|
Specification |
5V 6A |
12V 2A |
5V 6A |
24V 1A |
|
Wave and noise |
50mVp-p |
100mVp-p |
50mVp-p |
100mVp-p |
|
Inlet stability |
±0.5% |
±1% |
±0.5% |
±1% |
|
Load stability |
±0.5% |
±5% |
±0.5% |
±8% |
|
Efficiency |
73% |
73% |
|
Adjustable range for DC voltage |
CH1:+10,-5% |
CH1:+10,-5% |
|
AC input voltage range |
85～132VAC/170～264VAC Selected by switch 47～63Hz,240～370VDC |
|
AC input voltage range |
Cold-start current 18 A/115V 36A/230V |
|
OverLoad protection |
105%～150% hiccup mode,auto-recovery |
|
OverLoad protection |
………………. |
|
Setup,rise,hold up time |
200ms? 100ms? 30ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 class A |
|
Weight |
0.52kg | |
| |
 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND  |
| Pin 4 ： DC output+V2 |
| Pin 5.6 ： DC outpu COM |
| Pin 7 ： DC outpu+V1 |
| |
| | |
|
|
|
|
|
 |
|
 |
