15W dual output



Single unit output:powers 15W
Input voltage 110/220VAC±20% . Selected by swich
When the orders 380VAC input
Output voltage:The voltage we all can produce between3V-220VDC






D-15A D-15B

DC output

5V 2A 12V 0.5A 5V 1A 24V 0.5A

Wave and noise

50mVp-p 80mVp-p 50mVp-p 100mVp-p

Inlet stability

5% ±1% ±0.5% ±1%

Load stability

5% ±1% ±0.5% ±1%


70%     72%

Adjustable range for DC voltage

0%   1±10% ±10%

AC input voltage range

176~264VAC 47~63Hz 255~370VDC

AC input voltage range

Cold-start current 30A/230V

OverLoad protection

105%~135% hiccup mode,auto-recovery

OverLoad protection

115%-140% rated output voltage

Setup,rise,hold up time

200ms 50ms 20ms

Withstand voltage

I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5KvAC 1minute

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

Working temperature


Safety standards

Design refer to GB4943,UL60950,EN60950

EMC standards

Design refer to GB9254,EN55022 classB

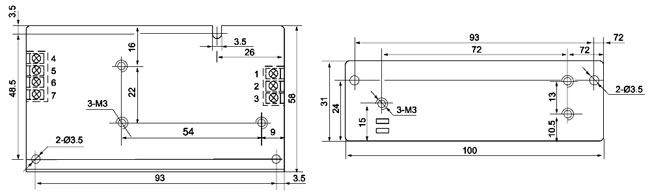

Overall dimension(mm)
Terminal Pin No.Assignment
Pin 1.2 : AC input
Pin 3 : GND
Pin 4 : DC output-V
Pin 5 : DC output+ V
Pin 6: DC output-V1
Pin 7 : DC output+ V1
