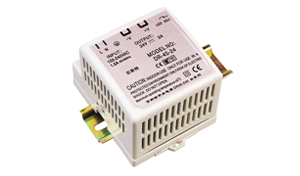

| GDR-45W |
 |
Summary:
Single unit output：powers 45W
Input voltage AC85-264V
100% full load burn-in test
Universal AC input: 90-264VAC
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Installed on DIN rail TS35/7.5 or15
Approvals: CE
Size: 78*93*67mm
| |
|
|
| |
|
Model
Specification |
GDR-45W-5 |
GDR-45W-12 |
GDR-45W-15 |
GDR-45W-24 |
|
DC output |
5V 5A |
12V 3.5A |
15V 2.8A |
24V 2A |
|
Wave and noise |
75MVP-P |
70MVP-P |
60MVP-P |
60MVP-P |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
72% |
77% |
77% |
80% |
|
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
85～264VAC 47～63Hz 120-370VDC |
|
AC input voltage range |
Cold-start current 30A/230V |
|
OverLoad protection |
105%～135%hicup mode：auto-recovery |
|
OverLoad protection |
115%～135% rated output voltage |
|
Setup,rise,hold up time |
300ms, 50ms, 80ms |
|
Withstand voltage |
I/P-O/P, I/P-FG:1.5Kv O/P-FG:05Kv 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight |
0.31kg | |
| | |
|
|
|
|
|
 |
|
 |
