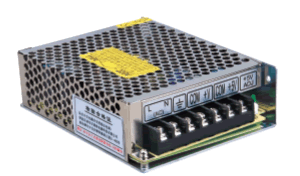

| 40w triple output |
|
129×98×38mm |
Summary:
Single unit output：powers 40W
Input voltageAC 85~264V . Selected by swich
Output voltage:The voltage we all can produce between3V-48VDC
| |
|
|
| |
|
Model
Specification |
T-40A |
T-40B |
T-40C |
| CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH3 |
|
Specification |
5V3A |
12V2A |
-5V0.5A |
5V3A |
12V2A |
-12V0.5A |
5V3A |
15V1.5A |
-15V0.5A |
|
Wave and noise |
100mVp-p |
120mVp-p |
100mVp-p |
100mVp-p |
120mVp-p |
120mVp-p |
100mVp-p |
120mVp-p |
120mVp-p |
|
Inlet stability |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
±0.5% |
±1% |
±1% |
|
Load stability |
±0.5% |
±4% |
±6% |
±0.5% |
±4% |
±4% |
±0.5% |
±4% |
±4% |
|
Efficiency |
72%/115VAC |
72%/115VAC |
72%/115VAC |
|
Adjustable range for DC voltage |
CH1:+10,-5% |
CH1:+10,-5% |
CH1:+10,-5% |
|
AC input voltage range |
85~264VAC? 47~63Hz; 120~370VDC |
|
AC input voltage range |
Cold-start current 20 A/115V 40A/230V |
|
OverLoad protection |
105%～150% hiccup mode,auto-recovery |
|
OverLoad protection |
CH1:5.75~6.75V |
|
Setup,rise,hold up time |
1.6s, 50ms,16ms/115VAC.800ms,50ms,60ms/230VDC |
|
Withstand voltage |
I/P-O/P:3KvAC I/P-FG:1.5KvAC O/P-FG:0.5KvAC 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 class B |
|
Weight |
0.45Kgs | |
| |

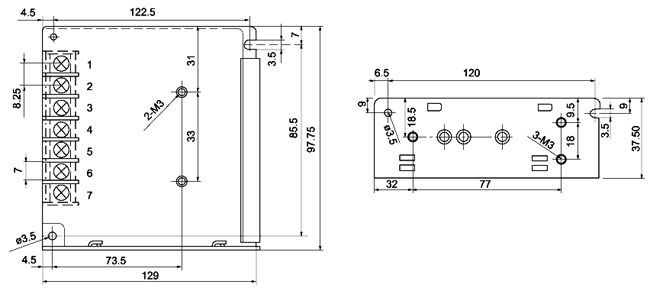

 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND  |
| Pin 4 ： DC output－V |
| Pin 5 ： DC output+ V |
| Pin 6 ： DC outputcom |
| Pin 7 ： DC output+ V1 |
| |
|
|
|
|
|
 |
|
 |
