The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact.
Functionality: The temperature setting on the scale equals to the upper switch point, which means that the Normally Closed contact opens. The temperature setting minus switch temperature difference (and tolerances) equals to the lower switch point, which means that the Normally Closed contact closes.

Thermostat Application:

For the control of warm-water(floor)heating systems and direct electric heating systems used in Commercial buildings,Residential buildings, Light in dustrial buildings,etc.

Mechanical Thermostat Advantage:

1. Adjustable temperature

2. High switching capacity

3. Low hysteresis

4. Change-over contact

5. Clip fixing

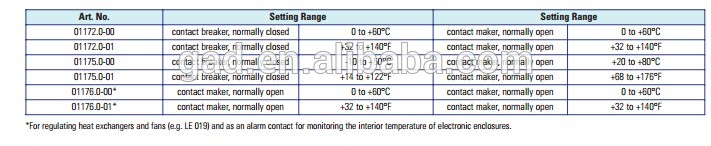

Mechanical Thermostat Product Details:

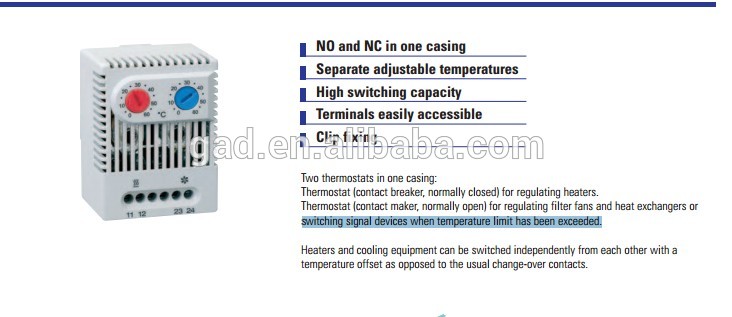

  Mechanical Thermostat





thermostat high switching performance thermostat smallcompact  thermostat large setting  thermostat easily accessible  thermostat hot sale thermostat high switching performance thermostat smallcompact  thermostat large setting  thermostat easily accessible  thermostat

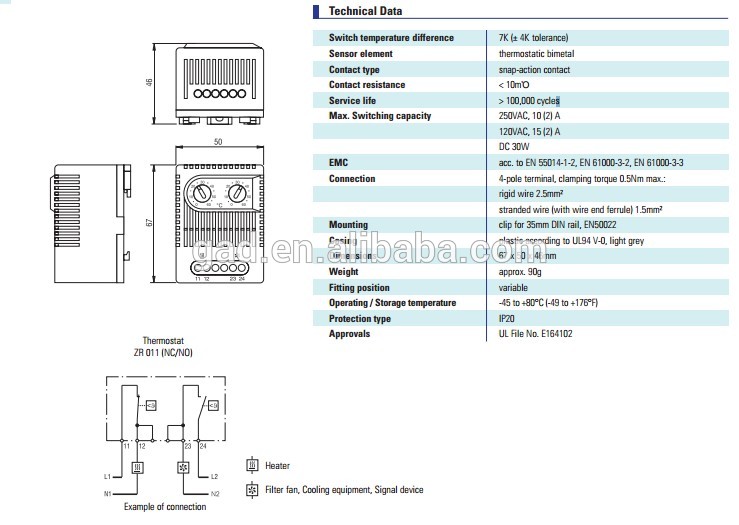

Example of Thermostat Connection:
