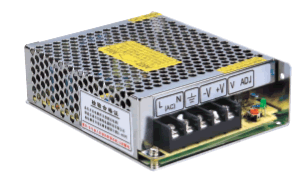

| 35W Standard-Model |
|

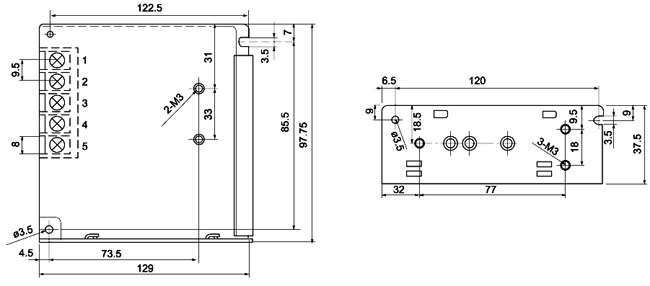

129×98×38mm |
Summary:
Single unit output：powers 35W
Input voltage 110/220VA C ± 20% . Selected by swich
When the orders 380VAC input
Output voltage:The voltage we all can produce between3V-220VDC
| |
|
|
| |
|
Model
Specification |
S-35-5 |
S-35-12 |
S-35-15 |
S-35-24 |
|
DC output |
5V 7A |
12V 3A |
15V 2.4A |
24V 1.5A |
|
Wave and noise |
80mVp-p |
120mVp-p |
120mVp-p |
120mVp-p |
|
Inlet stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
77% |
81% |
83% |
84% |
|
Adjustable range for DC voltage |
± 10% |
± 10% |
± 10% |
± 10% |
|
AC input voltage range |
85～132VAC/170～264VAC Selected by switch 47～63Hz,240～370VDC |
|
AC input voltage range |
Cold-start current 40A/230V |
|
OverLoad protection |
105%～150% hiccup mode,auto-recovery |
|
OverLoad protection |
115%～135% ratedoutput voltage |
|
Setup,rise,hold up time |
300ms, 50ms, 80ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight |
0.29kg | |
| |
 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND  |
| Pin 4.5 ： DC output－V |
| Pin 6.7 ： DC output+ V |
|
 | |
|
|
|
|
|
 |
|
 |
