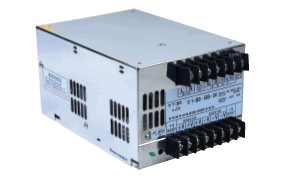

| 500W Exportation Model |
|
185×120×93mm |
Summary:
Single unit output：powers 500W
Input voltage :AC 85～264V . Selected by swich
When the orders 380VAC input
Output voltage:The voltage we all can produce between 12V-150VDC
| |
|
|
| |
|
Model
Specification |
SP-500-12 |
SP-500-13.5 |
SP-500 -24 |
SP-500 -48 |
|
DC output |
12V 40A |
13.5V 36A |
24V 20A |
48V 10A |
|
Wave and noise |
240mVp-p |
240mVp-p |
240mVp-p |
300mVp-p |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
84% |
84% |
85.5% |
87% |
|
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
85～132VAC/170～264VAC Selected by switch 47～63Hz,240～370VDC |
|
AC input voltage range |
Cold-start current 18A/115V 36A/230V |
|
OverLoad protection |
105%～300% hiccup mode,auto-recovery |
|
OverLoad protection |
115%-140% rated output voltage |
|
Setup,rise,hold up time |
1500ms 50ms 20ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5KvAC 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight |
1.8kg | |
| |

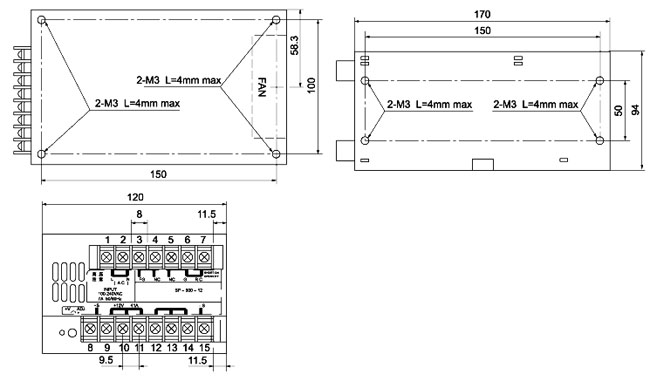

 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND |
| Pin 4.5： NC |
| Pin 6 ： R.C.G |
| Pin 7 ： R.C |
| Pin 8 ： +S |
| Pin 9.10.11 ：DC output+V |
| Pin 12.13.14 ： DC output-V |
| Pin 15 ： -S |
| |
|
|
|
|
|
 |
|
 |
