| Overview |

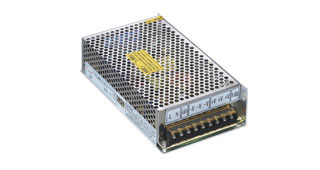

. Single output：240W
. Input Voltage range：110/220VAC±20% selectble by switch | |
 |
| General Specitication |
TOP |
| Specification |
Model |
| GS-240-12 |
GS-240-15 |
GS-240-24 |
GS-240-48 |
| DC output |
12V 20A |
15V 16A |
24V 10A |
48V 5A |
| Wave and noise |
100mVP-P |
100mVP-P |
100mVP-P |
120mVP-P |
| Inlet stability |
±0.5% |
±0.3% |
±0.3% |
±0.2% |
| Load stability |
±0.5% |
±0.3% |
±0.3% |
±0.2% |
| Efficiency |
82% |
82% |
83% |
86% |
| Adiustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
| AC input voltage range |
85～132VAC/170~264VAC Selected by switch 47~63Hz, 240~370VDC |
| AC Inrush current |
Cold-start current 15A/115V 30A/230V |
| OverLoad protection |
105%～135% hiccup mode ,auto-recovery |
| Over-voltage protection |
|
| Setup,rise,hold up time |
200ms, 50ms,20ms |
| Withstand voltage |
I/P-O/P：1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
-10℃~+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classB |
| Weight |
0.9kg | |
| Overall Dimenseion(mm) |
