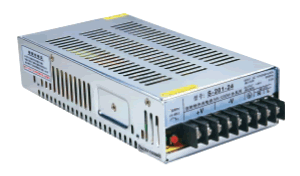

| 200W Standard-Model |
|
215×115×50mm |
Summary:
Single unit output：powers 200W
Input voltage 110/220VAC±20% . Selected by swich
When the orders input
Output voltage:The voltage we all can produce between3V-220VDC
| |
|
|
| |
|
Model
Specification |
S-201-5 |
S-201-12 |
S-201-24 |
S-201-48 |
|
DC output |
5V 40A |
12V 16.5A |
24V 8.3A |
48V 4.2A |
|
Wave and noise |
150mVp-p |
150mVp-p |
150mVp-p |
240mVp-p |
|
Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stability |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
Efficiency |
74% |
80% |
83% |
84% |
|
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
85～132VAC/170～264VAC Selected by switch 47～63Hz,240～370VDC |
|
AC input voltage range |
Cold-start current 25A/115V 50A/230V |
|
OverLoad protection |
105%～135% hiccup mode,auto-recovery |
|
OverLoad protection |
115%-145% rated output voltage |
|
Setup,rise,hold up time |
200ms, 100ms, 20ms |
|
Withstand voltage |
I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight |
0.9kg | |
| |

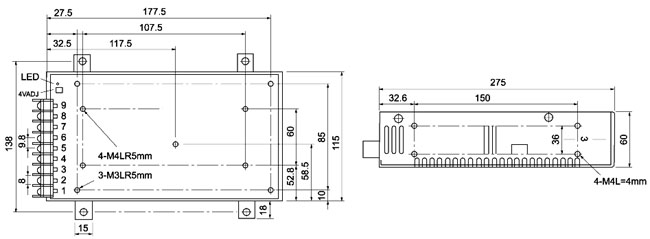

 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND  |
| Pin 4.5.6 ： DC output－V |
| Pin 7.8.9 ： DC output+ V |
| |
|
|
|
|
|
 |
|
 |
