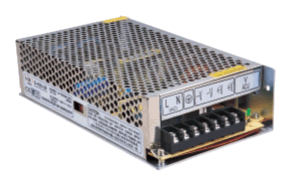

| 150W Standard-Model |
|

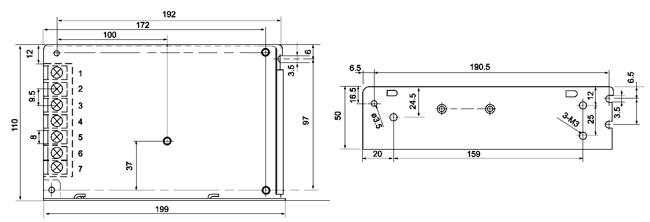

199×110×50mm |
Summary:
Single unit output：powers 150W
Input voltage 110/220VAC±20% . Selected by swich
When the orders input
Output voltage:The voltage we all can produce between3V-150VDC
| |
|
|
| |
|
Model
Specification |
S-150-5 |
S-150-12 |
S-150-15 |
S-150-24 |
|
DC output |
5V 30A |
12V 12.5A |
15V 10A |
24V 6.5A |
|
Wave and noise |
150mVp-p |
180mVp-p |
180mVp-p |
240mVp-p |
|
Inlet stability |
±0.5% |
±0.3% |
±0.3% |
±0.2% |
|
Load stability |
±0.5% |
±0.3% |
±0.3% |
±0.2% |
|
Efficiency |
78% |
82% |
84% |
85% |
|
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
|
AC input voltage range |
85～132VAC/170～264VAC Selected by switch 47～63Hz,240～370VDC |
|
AC input voltage range |
Cold-start current 35A/230V |
|
OverLoad protection |
105%～150% shut off AC recycle to restart |
|
OverLoad protection |
115%-135% rated output voltage |
|
Setup,rise,hold up time |
100ms, 50ms, 20ms |
|
Withstand voltage |
I/P-O/P:1.3Kv, I/P-FG:1.5Kv, O/P-FG:0.5Kv 1minute |
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ |
|
Working temperature |
-10℃～+50℃ |
|
Safety standards |
Design refer to GB4943,UL60950,EN60950 |
|
EMC standards |
Design refer to GB9254,EN55022 classB |
|
Weight |
0.8kg | |
| |
 Terminal Pin No.Assignment |
| Pin 1.2 ： AC input |
Pin 3 ： GND  |
| Pin 4.5 ： DC output－V |
| Pin 6.7 ： DC output+ V |
| |
|
|
|
|
|
 |
|
 |
