| Small size switch |

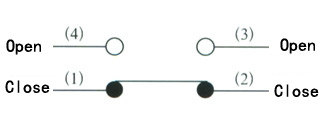

Contact way External appearance size(more) |
Characteristics：
＊double way switch
＊strong structure ，made of Zinc metal alloy and plastics
＊small size，water and oil resistant
＊double spring inner switch, longer machine life
＊bigger OT action
＊easy to contact line
＊many kinds of leading-to-move machine, easily use |
 | |
| Rated number: |
|
rated voltage |
nonelectrical carry |
electrical carry |
|
resistance carry |
bulb carry |
resistance carry |
bulb carry |
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
125VC
250VC
500VC
|
5
5 |
5
5 |
0.7
0.5 |
3
3 |
3
3 |
2
1.5 |
1
0.8 |
|
8VDC
14VDC
30VDC
125VDC
250VDC |
5
5
5
0.4
0.25
|
5
5
5
0.4
0.2 |
3
3
3 |
3
3
3 |
4
4
4 |
3
3
3 |
3
3
3 |
|
current |
N.C：at 24A .N.O：at 12A | |
Remarks：1.electrical carry:power: under0.4（AC）。time constant under 7msec（DC）。
2.current bulb carry is 10 times as that in stable condition. current motor carry is 6 times as that in stable conditions. | |
| Characteristics： |
|
Operation speed |
0.5mm-50cm/sec |
|
Action frequency |
Mechanically：120times/minute Electically：30 times/minute |
|
Contact resistance |
25mΩ(mm)(initial） |
|
Insulation resistance |
100MΩ below（at 500VDC） |
|
bearing voltage |
noncontact end : 1，000VAC，50/60Hz for one minute
current parts and noncurrent parts:1，500VAC，50/60Hz for one minute |
|
Vibration |
10-55Hz,1.5mm pairs swing |
|
hitting |
Machine：1，000m/Sec2(about 100G'S)
Action ：300m/Sec2(about 30G'S)
|
|
Surrounding temperature |
-5 to ＋65℃ |
|
humidity |
95% above |
|
Serve life |
Mechanically：10，000，000 times above Electrically：500，000 times above |
|
Weight |
about 130 to 190g |
|
Protection structure |
IEC specification：IP65 | |
| Action Characteristics： |
|
Models |
JDTZ－8104 |
JDTZ－8108 |
JDTZ－8107 |
JDTZ－8111 |
JDTZ－8112/8122 |
JDTZ－8166/8167/8168/8169 |
|
OF Max |
750g |
750g |
750g |
900g |
900g |
150g |
|
RF Minimum |
100g |
100g |
100g |
150g |
150g |
- |
|
PT Max |
200 |
200 |
200 |
1.5mm |
1.5mm |
30mm |
|
OT Minimum |
500 |
500 |
500 |
4mm |
4mm |
- |
|
MD Max |
120 |
120 |
120 |
1mm |
1mm |
- |
|
OP |
- |
- |
- |
26±0.8mm |
37±0.8mm |
- | |
|
