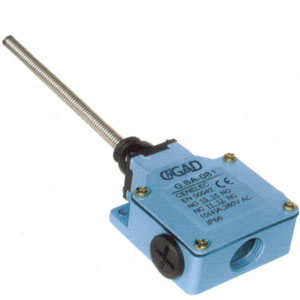

| Double Break Mechanism |
INO+INC Force Break snap action |
|
Rated Voltage/Current |
10(4)A, 125, 250VAC/6(2)A, 380VAC For inductance Load, CosØ =0.4 |
|
Contact Resistance |
25mΩ max. (initial value) |
|
Insulation Resistance |
100mΩ min. (at 500VDC) |
|
Dielectric Strength |
1000VAC, 50/60 HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between current-carrying and non-current-carrying metal parts |
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
Electrical Life |
500,000 at 10A 250VAC Resistive |
|
Mechanical Life |
10, 000, 000 operations min. (under rated conditions) |
|
Operating Speed |
5mm/s to 0.5m/s |
|
Degree of Protection |
IP65 |
|
Ambient Temperature Rised |
Max 30℃ over ambient temperature at rated voltage/current |
|
Conformed Standards |
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
|
Operating Temperature |
-5℃ ~+65℃ (with no icing) |
|
Storage Temperature |
-5℃ ~+65℃ (with no icing) |
|
Ambient Operating Humidity |
95 RH Max. |
|
Shock Resistance |
Mechanical durable: 1000m/s2 min. |
|
Malfunction: 300m/s2 min. |
|
Vibration Frequency |
Malfunction: 10 to 55HZ, 1.5mm double amplitude |
|
Terminal Screw Torsional Force |
6-8 kgf-cm |
|
Other Screw Torsional Force |
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
|
Bare Wire Diameter |
Ø2 Max |
|
Cable Diameter |
Ø12 Max(IP 65 if use cable 8-9) |
