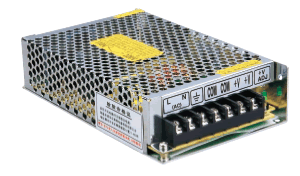

60w quad output

159×97×38mm   Summary: Single unit output：powers 60W Input voltageAC AC AC 85~264V . Selected by swich Output voltage:The voltage we all can produce between3V-48VDC         　　　　　　Model Specification 　　　 Q-60 CH1 CH2 CH3 CH4 Wave and noise 5V5.5A 12V2A -5V0.5A -12V0.5A Wave and noise 100mVp-p 120mVp-p 100mVp-p 120mVp-p Inlet stability ±0.5% ±1% ±0.5% ±0.5% Load stability ±0.5% ±4% ±1% ±1% DC output power 60W Efficiency 70% Adjustable range for DC voltage CH1:+10,-5% AC input voltage range ?85~264VAC47~63Hz;120~370VDC AC input voltage range Cold-start current 18A/115V 36A/230V OverLoad protection 105%～150% hiccup mode,auto-recovery OverLoad protection CH1:5.75V～6.75V Setup,rise,hold up time 1.6s,20ms,12ms/115VAC800ms,20ms,60ms/230VAC Withstand voltage I/P-O/P:3KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv 1minute Isolation resistance I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ Working temperature -10℃～+50℃ Safety standards Design refer to GB4943,UL60950,EN60950 EMC standards Design refer to GB9254,EN55022 class A Weight 0.55Kgs   Overall dimension(mm) Terminal Pin No.Assignment Pin 1.2 ： AC input Pin 3 ： GND Pin 4 ： DC output－V1 Pin 5 ： DC output－V2 Pin 6 ： DC output+ V2 Pin 7 ： DC outputCOM Pin 8 ： DC output+ V1
