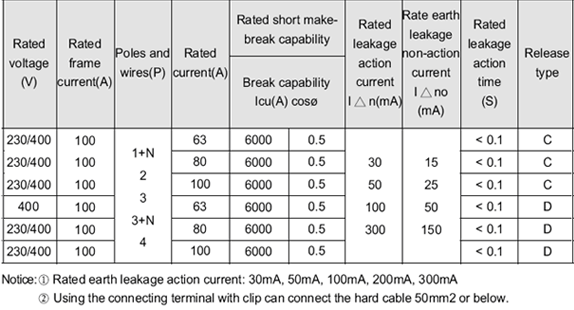

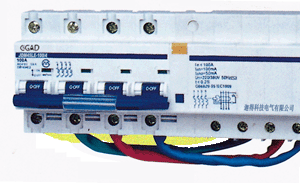

G45LE-100 Series Breaker is suitable for the circuit line of AC 50Hz
（60HZ）, rated voltage is 230/400V and rated current 63A-100A, and
provides the protective function of earth leakage, overload and short circuit.
The function also can be added according to the demand of users, which is
mainly used for protecting building illumination and distribution system.

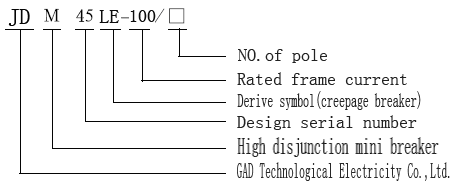

Models with Meaning

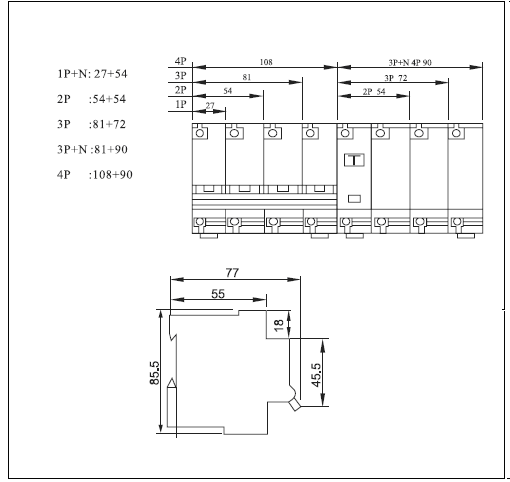

Shape and Installation Dimension
