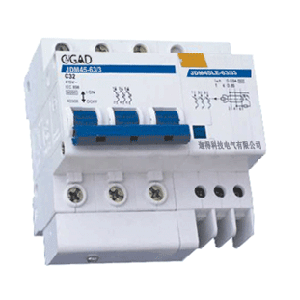

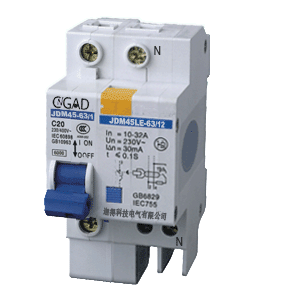

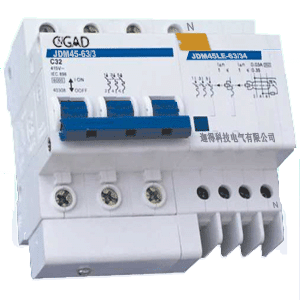

G45LE-63 Series Leakage Circuit Breaker is suitable in the
AC circuit of 50Hz,rated voltage up to 415V, rated current
6A-63A to protect against leakage, electric shock, overload and
short circuit. Users can add the protective function of overload
voltage if they need. This product is mainly used in lighting and
electric motor distribution system. This product conforms to the
requirement of GB16917 standards.

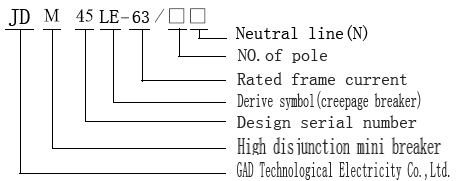

Models with meaning

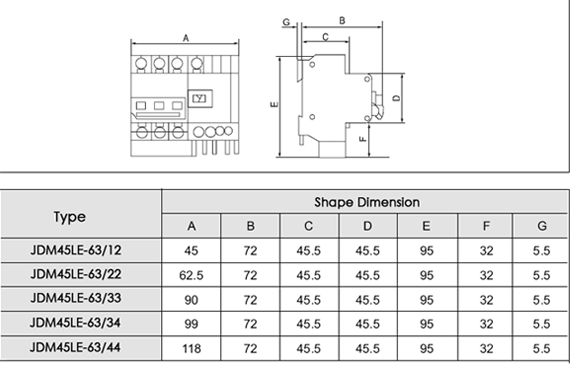

Shape and Installation Dimension
1．The installation adopts TH35-7.5 mounting guide.
2．Overall and installation dimension: see diagram
