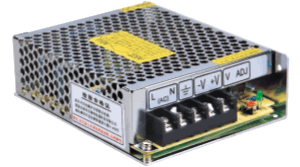

40W Standard Model



Single unit output:powers 40W
Input voltage 85~264VAC . Selected by swich
When the orders input
Output voltage:The voltage we all can produce between3V-150VDC







S-40-5 S-40-12 S-40-15 S-40-24

DC output

5V 8A 12V 3.5A 15V 2.8A 24V 1.8A

Wave and noise

75mVp-p 100mVp-p 100mVp-p 100mVp-p

Inlet stability

±0.5% ±0.5% ±0.5% ±0.5%

Load stability

±1% ±0.5% ±0.5% ±0.5%


72% 76% 76% 78%

Adjustable range for DC voltage

±10% ±10% ±10% ±10%

AC input voltage range

85~264VAC 47~63Hz 120~370VDC

AC input voltage range

Cold-start current 30A/115V 60A/230V

OverLoad protection

105%~150% hiccup mode,auto-recovery

OverLoad protection

115%~135% rated output voltage

Setup,rise,hold up time

300ms, 50ms, 60ms/230VAC

Withstand voltage

I/P-O/P:1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5KvAC 1minute

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

Working temperature


Safety standards

Design refer to GB4943,UL60950,EN60950

EMC standards

Design refer to GB9254,EN55022 classB


Overall dimension(mm)
Terminal Pin No.Assignment
Pin 1.2 : AC input
Pin 3 : GND
Pin 4 : DC output-V
Pin 5 : DC output+ V
